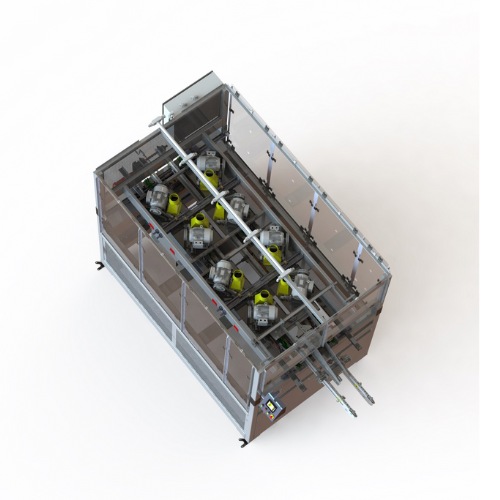

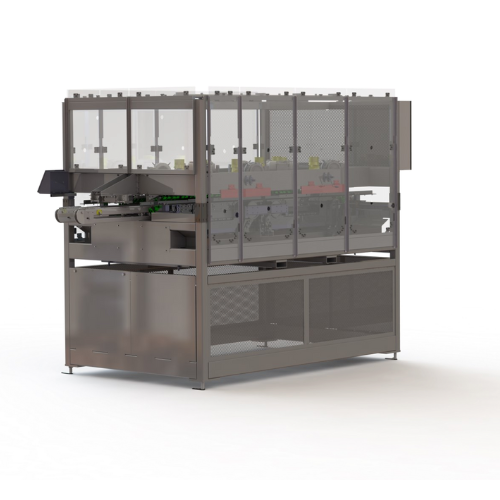

CHAMFER CHM120
With 8 adjustable cutting heads and the ability to integrate in-line with our TS300 or M2L series stacker, the CHM120 can tackle a wide range of board sizes depending on your specific application.
Home > Wood Processing Equipment > CHM120 Chamfer
High Speed Chamfer Machine
In this video boards exit the CHM120 Chamfer Machine into a TS300 Stacker. It’s capable of chamfering and stacking up to 150 boards per minute. If you make CHEP or PECO pallet lumber this machine can significantly decrease your labor costs per board for chamfers.
Standard Features
Quality High Speed
- Capable of chamfering up to 120 boards/min
- Chamfers both top edges of board in a single pass
- 8X3 hp clutch motors drive planar cutter heads
Specifications
| Board Size | Chamfering | Pass-through | ||
| Min | Max | Min | Max | |
| Length | 32” | 60” | 32″ | 72″ |
| Width | 5.4” | 5.6” | 2″ | 6″ |
| Thickness | 5/8 | 3/4 | 3/8 | 2 |
OPTIONS
- Startup support available by AIT technician
- Variable lengths available for grading conveyor
- Adjustable pass-through to allow boards to pass through machine without being transferred
- Fork-truck tubes allow for ease in positioning of the CHM120
- Spare chamfering inserts and cutter heads available through AIT
- 5 hp motors for cutter head
